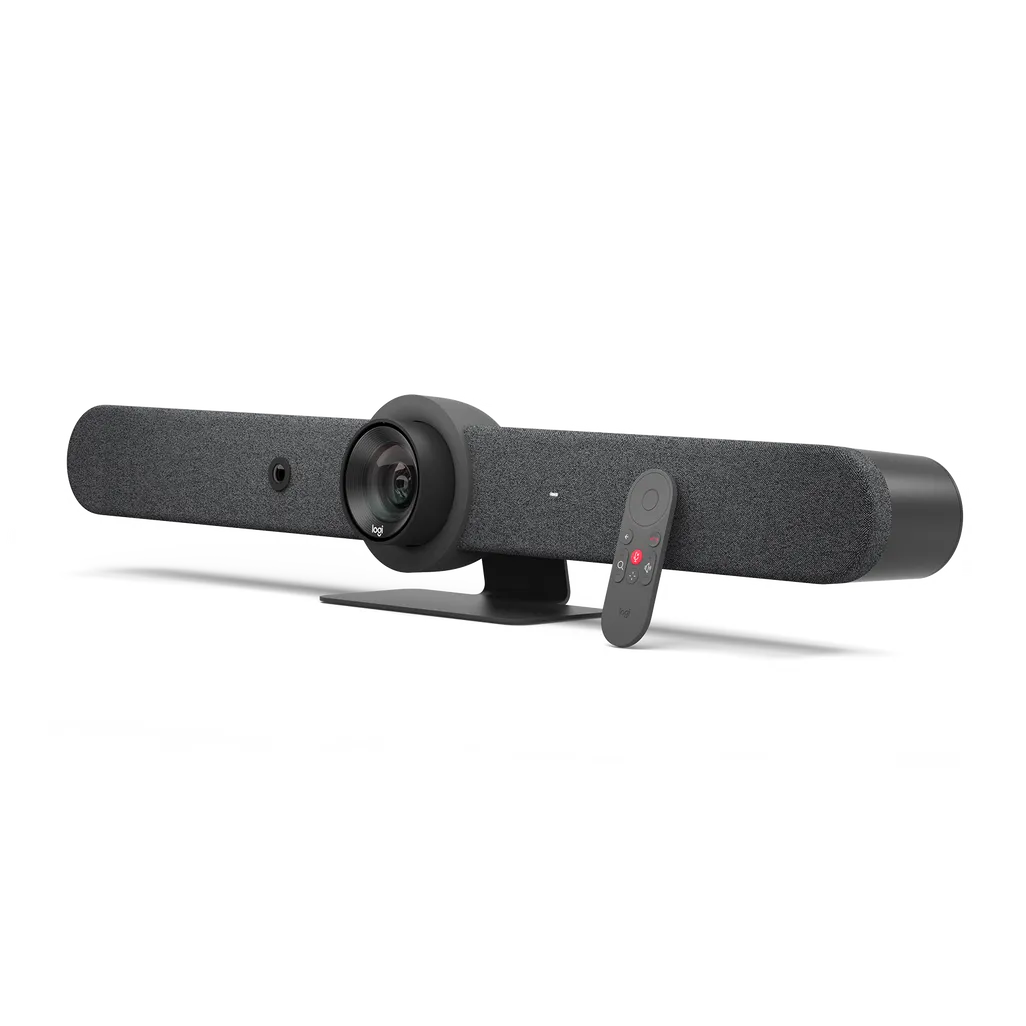

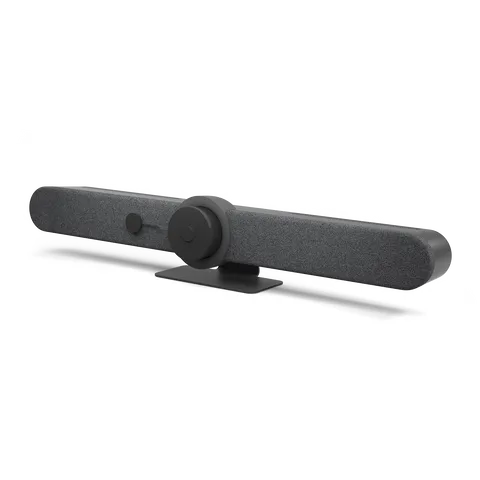

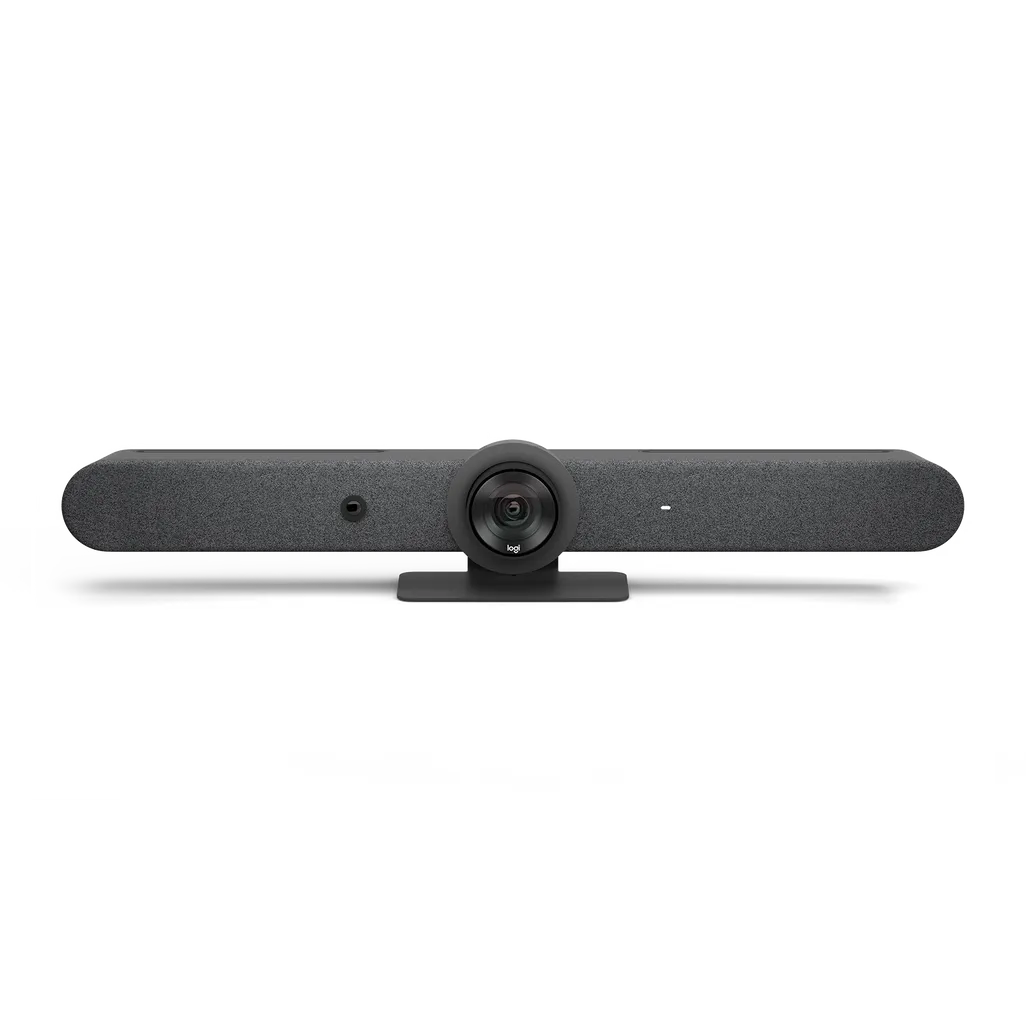

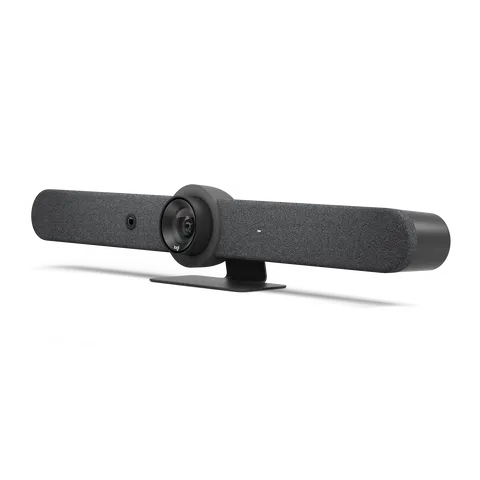

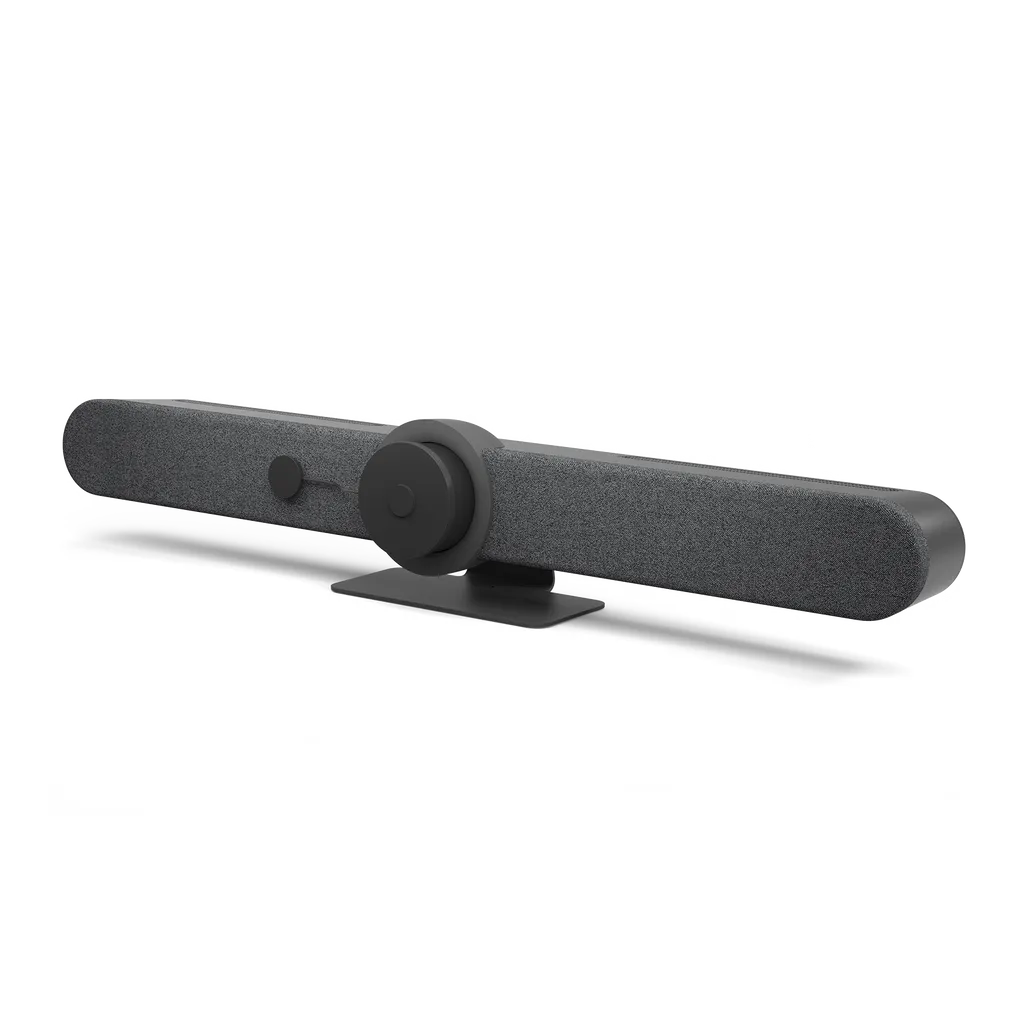

LOGI VC RALLY BAR 960-001313
SKU: 960-001313Logitech Rally Bar, Group video conferencing system, 4K Ultra HD, 30 fps, 5x, 3x, Graphite read more ↓ read less ↑
0,000,000.00
Out of Stock
- Categories:
- Webcams
Logitech Rally Bar. Product type: Group video conferencing system. HD type: 4K Ultra HD, Supported video modes: 576p, 720p, 900p, 1440p, 2160p, Maximum frame rate: 30 fps. Optical zoom: 5x, Digital zoom: 3x. Ethernet LAN, Wi-Fi. Product colour: Graphite
Packaging content
| AC adapter included | Y |
|---|---|
| Quick start guide | Y |
| Packaging content | |
| Cables included | AC,DC,HDMI,USB Type-A to USB Type-C |
| Power cable length | 2.5 |
| HDMI cable length | 2 |
| Remote control included | Y |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Y |
| DC-in jack | Y |
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 1 |
| USB connector type | USB Type-A,USB Type-C |
| HDMI output ports quantity | 2 |
Audio
| Built-in speaker(s) | Y |
|---|---|
| Noise reduction | Y |
| Echo cancellation | Y |
| Microphone pick-up range | 4.5 |
| Output level | 90/99 |
| Output voltage Total Harmonic Distortion (THD) | 2 |
| Audio beamforming | Y |
| RMS rated power | 8 |
| Sample rates | 0 - 48 |
| Line-out impedance | 4 |
| Output level | 92/99 |
Network
| Wi-Fi | Y |
|---|---|
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 |
| Security algorithms | 128-bit AES |
| Security algorithms | 192-bit AES |
| Supported network protocols | IPv4, IPv6 |
Weight & dimensions
| Depth | 160 |
|---|---|
| Height | 164 |
| Weight | 7080 |
| Width | 910 |
| Package height | 218 |
| Package depth | 989 |
| Package width | 207 |
| Package weight | 9305 |
Power
| AC input voltage | 100 - 240 |
|---|---|
| Power source type | AC |
| Number of batteries supported | 2 |
| Power plug type | Type C |
| Current | 4.754 |
| DC input voltage | 19 |
| Battery technology | Lithium |
| Battery capacity | 220 |
Operational conditions
| Operating temperature (T-T) | 0 - 40 |
|---|---|
| Operating relative humidity (H-H) | 10 - 95 |
| Storage temperature (T-T) | -40 - 70 |
| Heat dissipation | 64 |
Technical details
| Product type | Group video conferencing system |
|---|---|
| PTZ control | Y |
| Product colour | Graphite |
| Pan range | -25 - 25 |
| Tilt angle range | -15 - 15 |
Camera
| Zoom capability | Y |
|---|---|
| Field of view (FOV) angle | 90 |
| Horizontal field of view | 82.1 |
| Remote control interface | Bluetooth |
| Diagonal field of view | 90 |
| Optical zoom | 5 |
| Vertical field of view | 52.2 |
| Digital zoom | 3 |
Video
| HD type | 4K Ultra HD |
|---|---|
| Maximum frame rate | 30 |
| Optical zoom | 5 |
| Digital zoom | 3 |
| Supported video modes | 720p,900p,1440p,2160p |
| Supported video modes | 576p,720p,900p,1440p,2160p |
Microphone
| Microphone direction type | Omnidirectional microphone |
|---|---|
| Microphone frequency | 90 - 16000 |
| Microphone sensitivity | -36 |
| Number of microphones | 6 |
| Sound pressure level (max) | 90 |
Interface module
| Interface module HDMI output ports quantity | 2 |
|---|---|
| Interface module HDMI ports quantity | 3 |
| Interface module HDMI input ports quantity | 1 |
| Interface module Ethernet LAN (RJ-45) ports | 1 |
Features
| Telepresence | N |
|---|
Performance
| PTZ control | Y |
|---|---|
| Product colour | Graphite |
| Product type | Group video conferencing system |
| Tilt angle range | -15 - 15 |
| Pan range | -25 - 25 |
Computer system
| Windows operating systems supported | Windows 10,Windows 11 |
|---|---|
| Mac operating systems supported | Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey |
Battery
| Battery capacity | 0.675 |
|---|
Logistics data
| Master (outer) case height | 231 |
|---|---|
| Master (outer) case width | 220 |
| Master (outer) case gross weight | 9909 |
| Master (outer) case length | 1004 |
