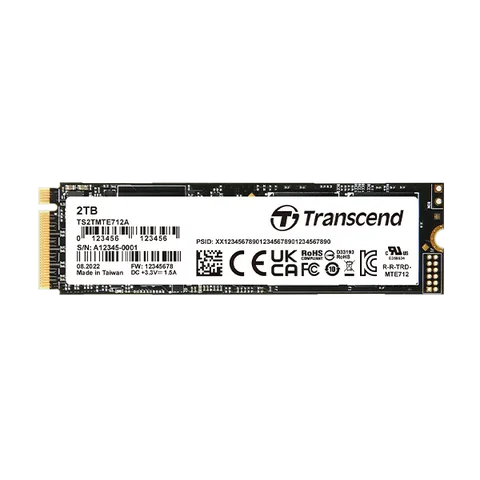

Transcend PCIe M.2 SSDs. SSD capacity: 512 GB, SSD form factor: M.2, Component for: Universal
Weight & dimensions
| Width |
80 |
| Weight |
9 |
| Depth |
22 |
| Height |
3.58 |
Power
| Operating voltage |
3.3 |
| Power consumption (idle) |
1.28 |
| Power consumption (read) |
5.6 |
Features
| SSD form factor |
M.2 |
| SSD capacity |
512 |
| Interface |
PCI Express 4.0 |
| Memory type |
3D NAND |
| NVMe |
Y |
| Hardware encryption |
Y |
| Random read (4KB) |
350000 |
| Mean time between failures (MTBF) |
3000000 |
| PCI Express interface data lanes |
x4 |
| NVMe version |
1.4 |
| M.2 SSD size |
2280 (22 x 80 mm) |
| PCI Express CEM revision |
4.0 |
| Component for |
Universal |
| Random write (4KB) |
330000 |
| TBW rating |
4000 |
| Sequential read speed (CDM) |
3800 |
| Sequential write speed (CDM) |
3200 |
| Drive writes per day (DWPD) |
1.84 |
Operational conditions
| Operating relative humidity (H-H) |
5 - 95 |
| Operating shock |
1500 |
| Vibration resistance |
20 |
| Storage temperature (T-T) |
-55 - 85 |
| Operating temperature (T-T) |
-20 - 75 |
