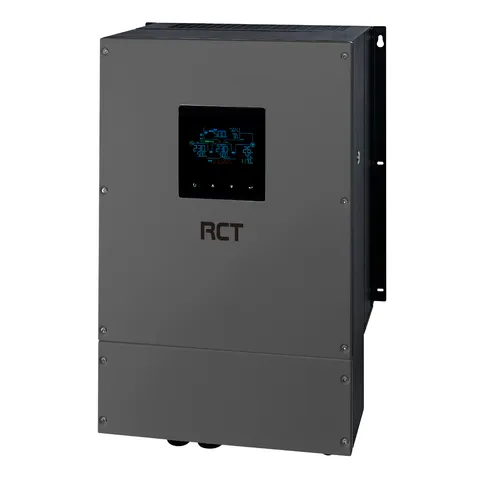

RCT-AXPERT WP 8K-48V
SKU: RCT-AXMWP-8K-48V
IP65 waterproof and dustproof makes the inverter available for various working conditions
Built-in WiFi for mobile monitoring (APP is available)
Reserved communication port for BMS (RS485, CAN-BUS or RS232)
Replaceable fan design for ease of maintenance
Battery independent design
Configurable AC/PV output usage timer and prioritization
Selectable high power charging current
Selectable input voltage range for home appliances and personal computers
Compatible to Utility Mains or generator input
Parallel operation up to 6 units
IP65 waterproof and dustproof makes the inverter available for various working conditions
Built-in WiFi for mobile monitoring (APP is available)
Reserved communication port for BMS (RS485, CAN-BUS or RS232)
Replaceable fan design for ease of maintenance
Battery independent design
Configurable AC/PV output usage timer and prioritization
Selectable high power charging current
Selectable input voltage range for home appliances and personal computers
Compatible to Utility Mains or generator input
Parallel operation up to 6 units
Input
| Voltage | 230V AC |
|---|---|
| Selectable Voltage Range | 170-280V AC (PC) 90-280V AC (Home Appliance) |
| Frequency Range | 50Hz/60Hz (Auto Sensing) |
Output
| Efficiency (Peak) | 93% |
|---|---|
| Wave Form | Pure Sine wave |
| Transfer Time | 10 ms (PC); 20 ms (home Appliance) |
Battery
| Battery voltage | 48 V DC |
|---|---|
| Floating Charge Voltage | 54V DC |
| Over Charge Protection | 63V DC |
Detail
| Rated Power | 8000va/8000w |
|---|
